Dornier Do R 2 Superwal
Type 4 + 19 seat flying boat (11 in the front cabin 8 in the aft)
Engine 2 Rolls-Royce Condor III, 2 x 650  hp 1 Packard 3A 2500 , 2 x 800 hp
Dimensions Length 24.60 m, height 5.85 m, span 28.60 m, wing area 143 m2
Weights Empty 8000 kg, load 2500 kg, flying weight 10500 kg, fuel capacity 4 x 600 l, 4 x 285 l
Performance Max. speed 180 km/h, cruising speed 150 km/h, landing speed 110 km/h, service ceiling 1700 m, range 2000 - 2200 km



Type WerkNr. Registration History
R 2 Ras 118 D-1115 First flight 30/9 1926. tested in 1927 by Severa for a military role
R 2 Ras 147 D-1255 "Narwal". Used by Lufthansa until 1929. In 1929 to RVM

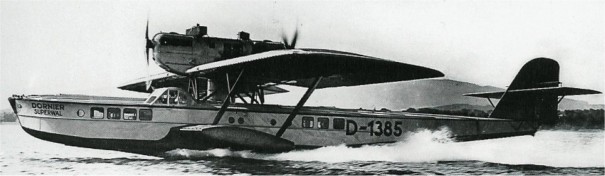

R 2 Pas 148 D-1385 Taken over by Severa and tested. In Febr. 1929 to Lufthansa, the Küstenflug Abteilung. Already in June 1929 given to DVL and used until 1936

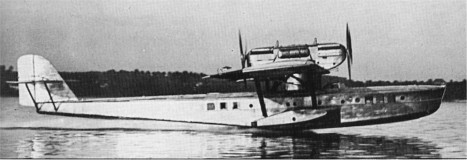

Do R 2 Superwal prototype

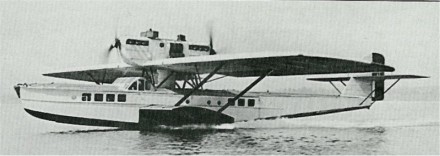

Do R 2 with   Packard engines

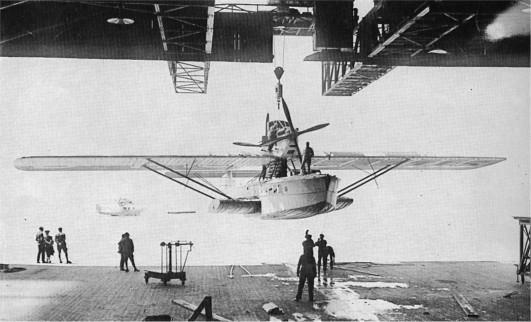

Do R Ris D-1115 at Friedrichshafen
Do R 2 prototype
