One Komet III and one Merkur converted to Air-Ambulance. Special  design of passenger cabin :Toilet and a baggage hold in the rear. One standing and one hanging litter  on the starboard side, seating for 4 persons and a seat for a nurse on the port side + a medcine chest . The litters and seats were protected against shocks by elastic cables and rubber buffers. The litters were rolled in on a guiding rail or lifted in laterally through a wide door folding upward. a normal door was on the port side.

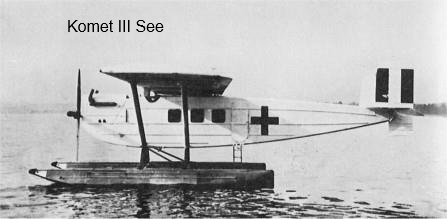

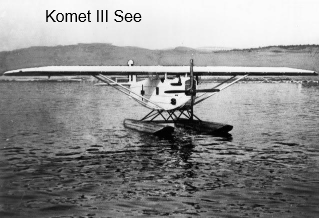

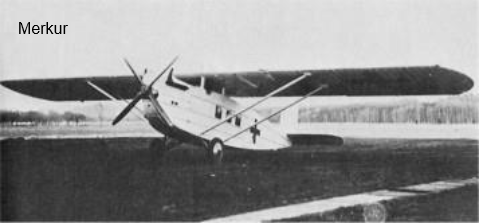

Type Air-Ambulance  (Komet III) = Merkur Air-Ambulance  (Komet III See)
Engine 1 Rolls-Royce Eagle IX
Dimensions Length 12.4 m, height 3.5 m, span 19.6 m, wing area 62.0 m2 Length 13.3 m, height 4.7 m, span 19.6 m, wing area 62.0 m2
Weights Empty 2400 kg, flying weight 3200 kg
Performance Max. speed 160 km/h, service ceiling 2900 m
Type Werk.Nr Registration History
