Type Do R 4 Gas   4 + 19 seat flying boat (11 in the front cabin 8 in the aft) Do R 4 Nas 4 + 19 seat flying boat (11 in the front cabin 8 in the aft) Do R 4 Sas 4 + 19 seat flying boat (11 in the front cabin 8 in the aft) Do R 4 Cas 4 + 19 seat flying boat (11 in the front cabin 8 in the aft)
Engine Engine4 Gnôme-Rhône 9Ak Jupiter VI Napier V Lion 4 Siemens Jupiter VI Pratt & Whitney Hornet
Dimensions Length 24.60 m, height 6.0 m, span 28.60 m, wing area 137 m2
Weights Empty 9850kg, load 4150 kg, flying weight 14000 kg, fuel capacity 4 x 600 l, 4 x 285 l
Performance Max. speed 210 km/h, cruising speed 190 km/h, landing speed 115 km/h, service ceiling 1500 m, range 1500 km Max. speed 210 km/h, cruising speed 190 km/h, landing speed 115 km/h, service ceiling 1500 m, range 1500 km
Type Werk.Nr Registration History

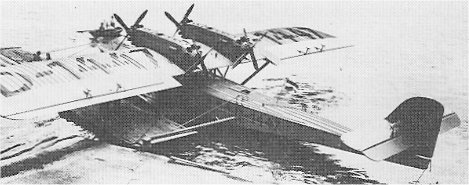

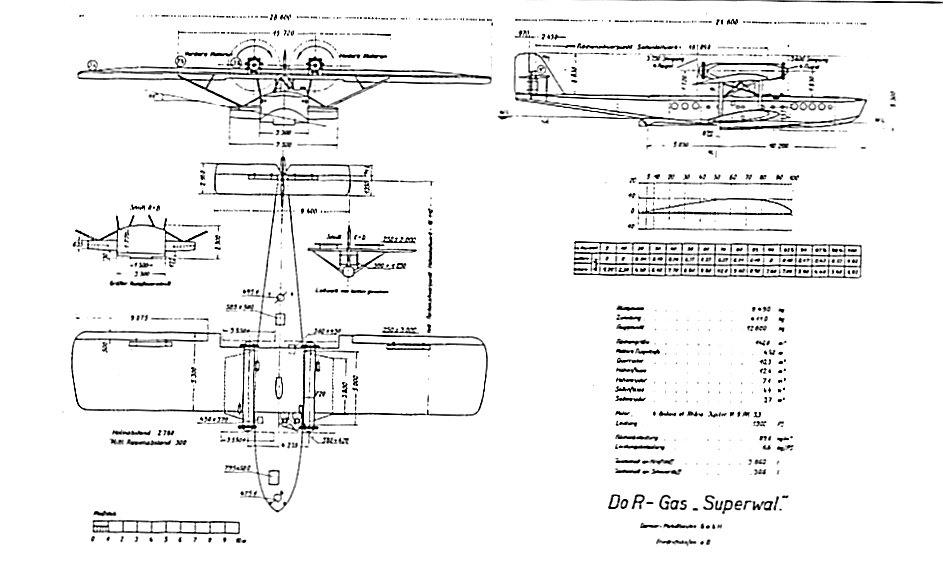

R 4 Gas 146 D-1447 "Graf Zeppelin". Used by Lufthansa . unregistered from June 1932
R 4 Gas 172 D-1500 "Eckener" = "Blauwal", Used for several world records (Pilot Richard Wagner) between 20/1 and 5/2 1928. Used by Lufthansa . unregistered from June 1932

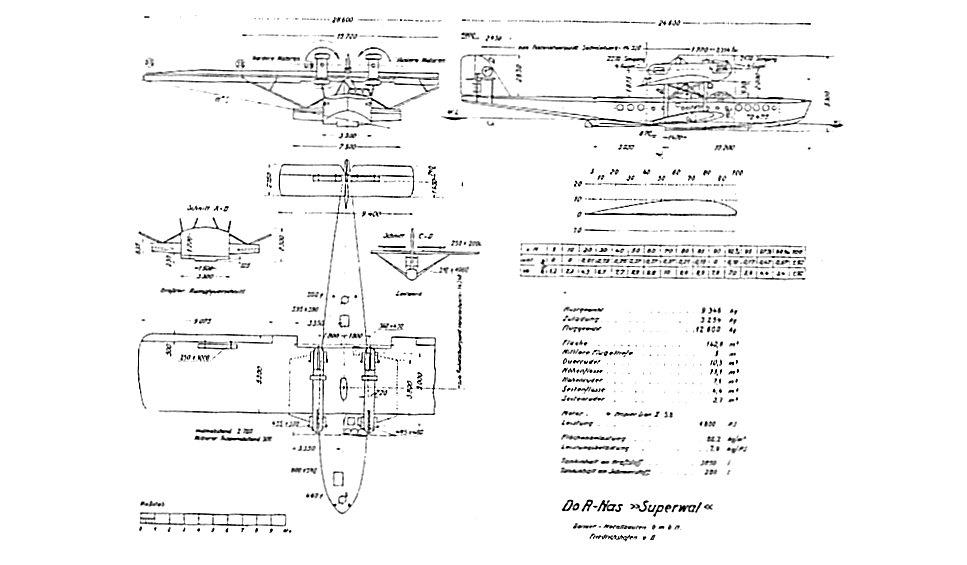

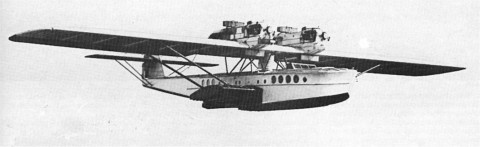

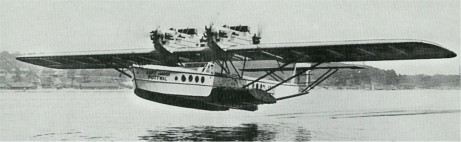

R 4 Nas 143 D-1337 "Pottwal". Used by Severa  Gmbh until Febr. 1929. To Lufthansa and unregistered from Jan. 1932
R 4 Nas W. 13 M-MWAM MWAMBuilt in Spain by CMASA with main parts supplied from Germany
R 4 Sas 190 D-1761 "Rügen". To DLH until May 1931. To DVS GmbH, destroyed in Jan. 1937

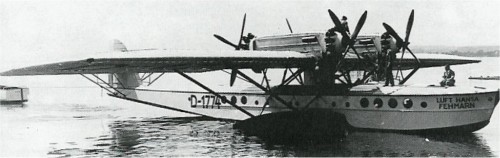

R 4 Sas 192 D-1774 "Fehmarn". To DLH until Nov. 1930. To DVL e.V.., Adlershof. Scrapped  in Nov. 1936
R 4 Sas 208 D-1782 "Usedom". According to John Stroud used by DLH
R 4 Sas 141 I-RENE Used by the italian company SANA
R 4 Sas 142 I-RIDE RIDEUsed by the Italian company SANA. Destroyed by fire in the night of 12-13/4 1929
R 4 Sas 144 I-REOS REOSUsed by the Italian company SANA. (According to "Nowarra - Dornier Wal" the registration should be I-DEAR)
R 4 Sas 145 I-RATA Used by the Italian company SANA. Crashed  off Valencia 11/8 1933
R 4 Sas 170 I-RONY Used by the Italian company SANA. Lost at sea 21/11 1930
R 4 Sas 171 I-RUDO Used by the Italian company SANA
R 4 Sas 209 D-1785

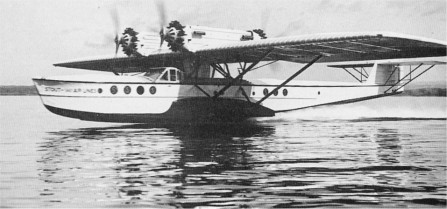

R 4 Cas 189 Used by the Stout D and C Airlines in 1929
R 4 Cas 191 Used by the Stout D and C Airlines in 1929
Between 20 January and 5 February 1927 Dornier Chief Pilot Richard Wagner established twelve world records for seaplanes with a new R4 Gas Superwal. This aircraft and eleven more with Gnome et Rhône Bristol-Jupiter engines (R4 Gas) or 525 hp Siemens-Bristol-Jupiter engines (R4 Sas) were delivered to the Italian airline Società Anonima Navigazione Aerea (SANA) and Luft Hansa during 1928 and ‘29. Apart from their use by Luft Hansa, six Superwals saw regular service with SANA into the early 1930s on a route along the Italian west coast and on to Spain. Three aircraft were lost during their service. The Superwal I-RUDO (equipped with Isotta Fraschini Asso 500 engines) went into service with the Italian Air Ministry in 1934 and became the last Superwal in Italian service. At least one aircraft was assembled in Spain by CASA.
