Fieseler Fi 98
Single seat dive bomber
1 BMW 132A
Length 7,40 m, height 3,00 m, wingspan 11,50 m, wing area 24,51 m2
Empty 1453 kg, loaded 2165 kg
Max. speed 295 km/h, cruising speed 270 km/h, range 470 km, service ceiling 9000 m, climb to 1000 m 1 min. 7 sec., landing speed 95 km/h
Armament (Proposed)
2 7,92 mm MG 17 + 4 50 kg bombs
First flight 16/7 1935

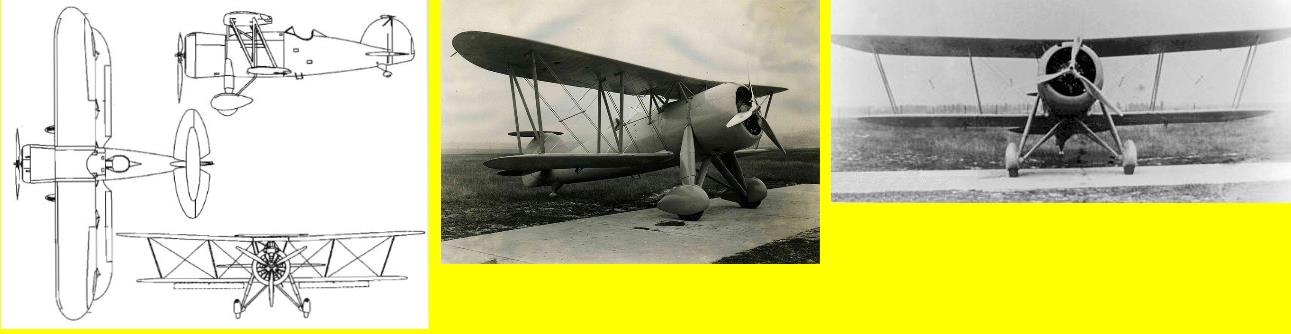

The Fieseler Fi 98 was a dive-bomber designed in response to the same RLM specification as the Henschel Hs 123, but that never progressed beyond the prototype stage. That specification was issued on 11 February 1934 and called for a robust aircraft capable of serving as a dive-bomber and ground attack aircraft. Fieseler produced a design for a biplane with staggered slightly unequal wings - the upper wing had a wider span than the lower wing. The cockpit was placed behind the trailing edge of the lower wing. The most unusual feature of the Fi 98 was its dual horizontal control surfaces, with the moving parts mounted low on the tail and a second, smaller, fixed surface mounted at the top of the fin. The fuselage of the Fi 98 was built with an all-metal shell, while the wings and tail surfaces consisted of a metal framework with fabric covering.
The Fi 98 made its maiden flight early in 1935, by which time it was clear that the Henschel Hs 123 was going to be chosen as the 'first phase' dive-bomber and work had already begun on the 'second phase' monoplane dive-bombers, amongst them the Junkers Ju 87. Fieseler had been awarded a contract to produce three prototype Fi 98s, but only the first had been completed when work on the project stopped in 1936.
