SN 2
Type
Single seat experimental aeroplane
Engine
1 BMW X aircooled 5-cyl. radial, 45 hp, fixed metal 2-bladed prop. dia 1.90 m.Fuel capacity 44 l, oil 10 l
Dimensions
Length 6.87 m, span 10.00 m, height 2.00 m, wingarea 11.64 m2 - 15.38 m2
Weights
Weights Empty 380 kg, flying weight 495 kg
Performance
Max. speed 160 km/h, landing speed 44 km/h, climb 150 m/min, range 300 km, service ceiling 3490 m
Type
Werk.Nr
Registration
History

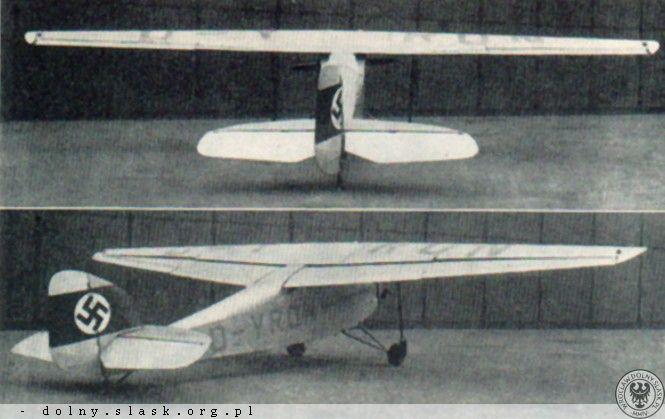

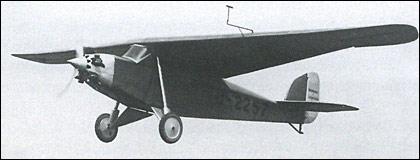

D-2257 , D-YRON
The Versuchsflugbau der T.H. Breslau developed this plane under supervision of Prof. Schmeidler. First flight

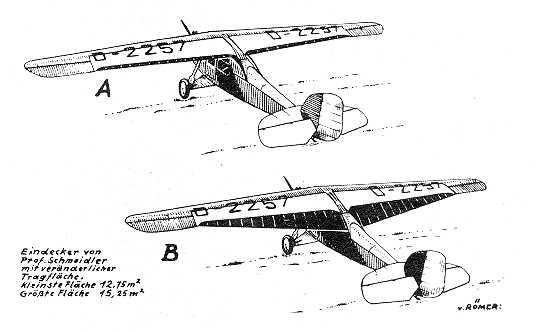

1935. Possible to change wingarea during flight
The wing root corda could be changed from 1.60 m to 2.32 m, the mid section from 1.16 m to 1.54 m while the tip was constant at 0.75 m
