| Type |
Single seat motorglider |
| Engine |
1 DKW 18 hp |
| Dimensions |
Length , height , span 15 m , wing area , |
| Weights |
Empty , loaded 350 kg , max. take off weight |
| Performance |
Max.. speed 100 km/h , landing speed 35 km/h |
We have already reported on the motor glider Milan G.

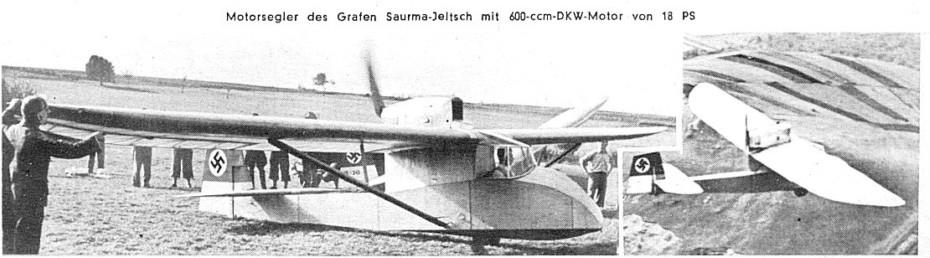

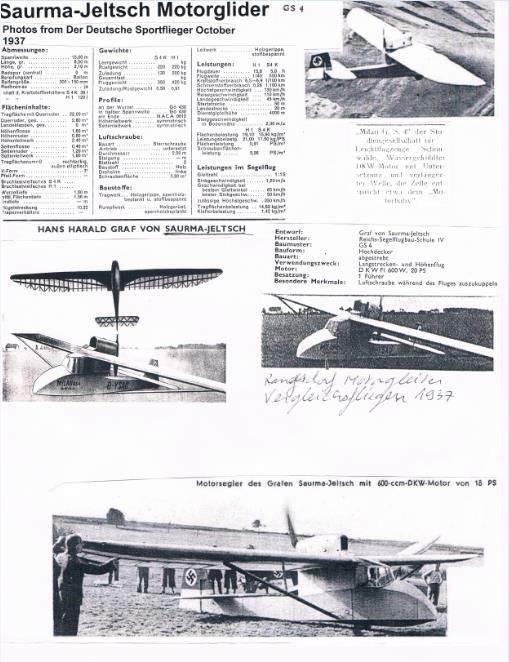

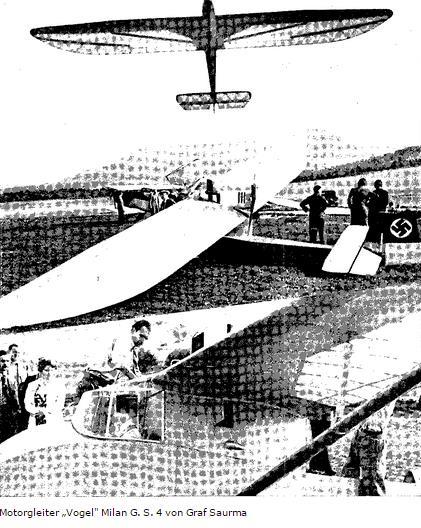

S. 4 of Count Saurma, which reached 4168 m in the Teck glider airfield during a high-altitude flight under the guidance of Himmelheber, in "Flugsport" No. 18 page 501. As the illustrations below show, it is a braced high-wing aircraft with a wingspan of 15 m with a normal horizontal and vertical stabilizer, which is common for gliders.
The aircraft rolls on a wheel protruding from the underside of the fuselage and must be guided by the wing tips during take-off.
A DKW engine Reichsklasse of 600 cc is used for operation, v/elcher delivers 18 hp at 3200 rpm. The propeller lying on the engine is reduced to 900 revolutions, drive chain. Maximum speed 100 km, landing speed 35 km, take-off length 60 m. Fuel consumption 7-8 l/h The fuel tank is to be designed for an operating radius of 2400 km. Weight ready for use 350 kg
